TransCore SmartPass RFID Reader
$5,800.00
RFID Vehicle Identification for Attended and Unattended Weighing
Product Overview
Interface Logic Systems (ILS) is an authorized dealer for TransCore SmartPass RFID readers.

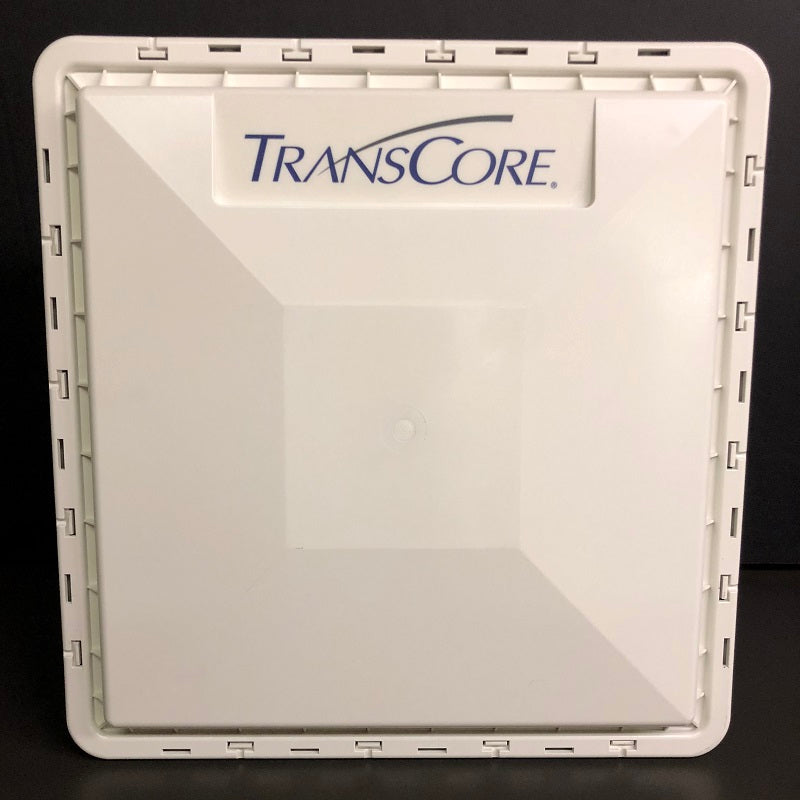

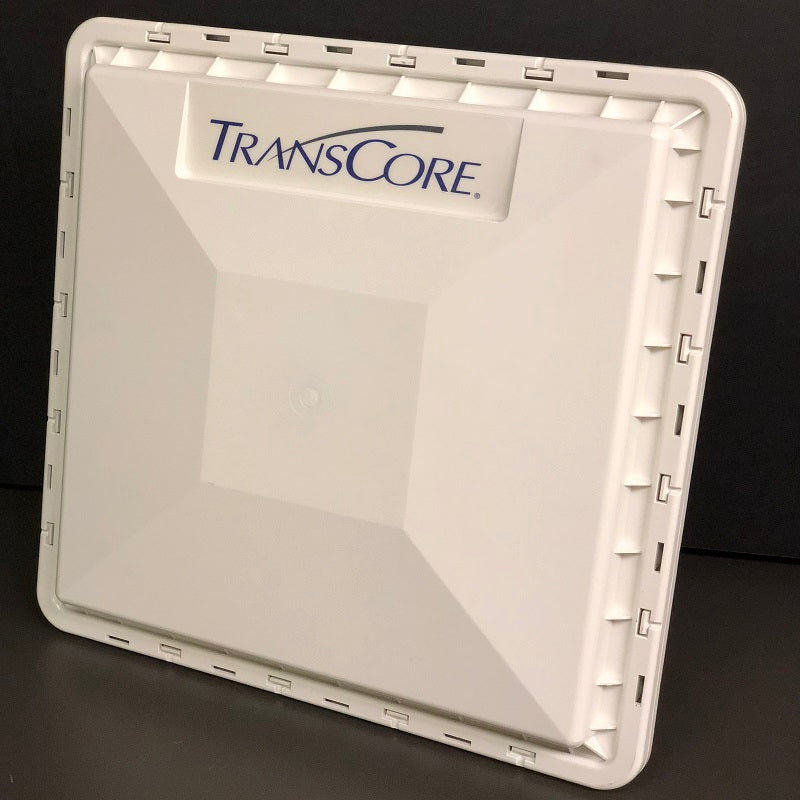

The TransCore SmartPass RFID Reader automatically captures the identity of any vehicle equipped with a compatible radio frequency identification (RFID) tag. It is designed for use in both attended and unattended scale applications, helping improve weighing accuracy while significantly increasing throughput.
Designed to Improve Speed and Accuracy
By identifying vehicles automatically, the SmartPass RFID Reader reduces manual data entry and minimizes operator intervention.
Key benefits include:
- Faster vehicle identification
- Improved transaction accuracy
- Reduced scale congestion
- Reliable operation in high‑traffic environments
When used in conjunction with an ILS Remote Data Terminal (RDT), drivers can be prompted to enter any required variable data needed to complete the transaction.
Integrated, Industrial‑Grade Design
The SmartPass RFID Reader integrates multiple components into a single, rugged unit specifically designed for outdoor industrial environments.
The reader includes:
- Antenna
- RF module
- Tag decoder
- Power supply
A weather‑resistant, industrial RF junction box is provided to simplify installation, wiring, and ongoing maintenance.
RFID Tag Support and Options
RFID tags used with the SmartPass system are factory‑programmed with unique identification numbers, which are then assigned within the Scale Management System database.
Tag options include:
Truck and Industrial Tags
- Designed for industrial environments
- Bolted or riveted to truck or tractor bodies for security
Windshield Tags
- Available for automobiles and personal pickup trucks
Passive (Beam‑Powered) Tags
- Maintenance‑free
- No internal battery
- Indefinite working life
- Ideal for most scale and access control applications
Battery‑Powered Tags
- Available for applications requiring extended read range
- Approximately 10‑year average working life
ILS can assist in selecting the appropriate tag type based on operational requirements.
Ideal Applications
- Attended and unattended truck scales
- Vehicle access control
- Yard and facility automation
- High‑traffic industrial weighing operations
Compatibility
- Works with TransCore SmartPass RFID tags
- Integrates with ILS ScaleQ software
- Compatible with ILS Remote Data Terminals
- Suitable for outdoor and industrial environments
What You Are Purchasing
You are purchasing one TransCore SmartPass RFID Reader, supplied with a weather‑resistant RF junction box.
RFID tags, mounting hardware, terminals, and software systems are not included unless otherwise specified.
Warranty: Interface Logic Systems warrants this product against defects in materials and workmanship for a period of one (1) year from the date of shipment. Warranty service is provided in accordance with ILS warranty terms.
