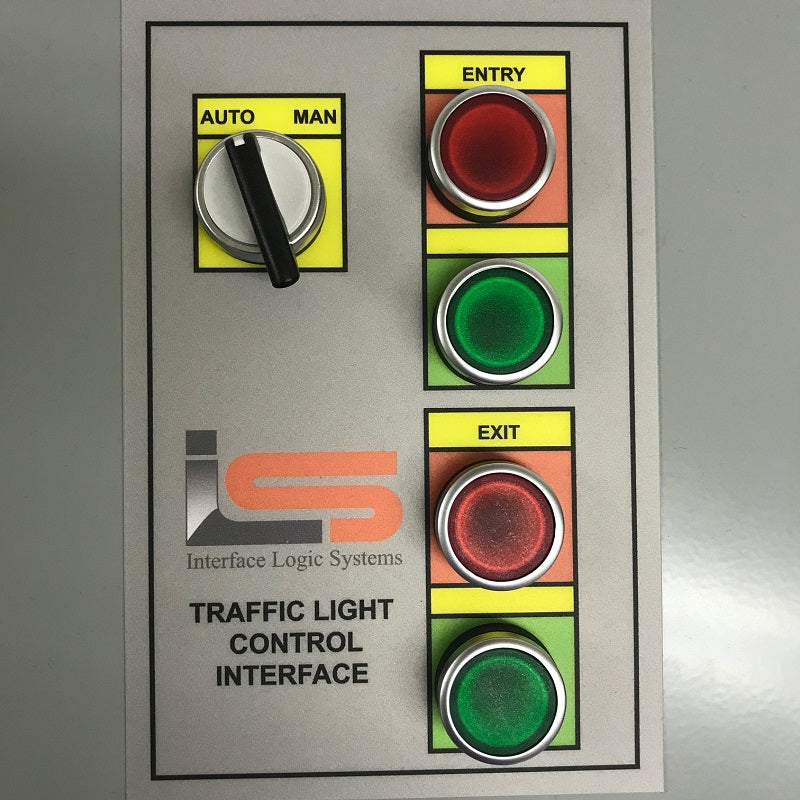

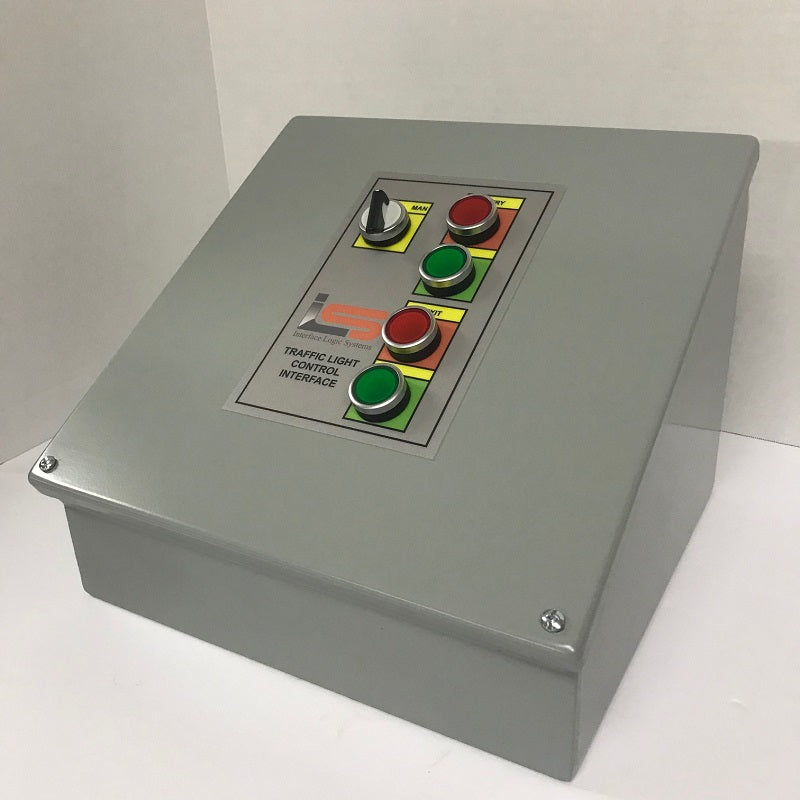

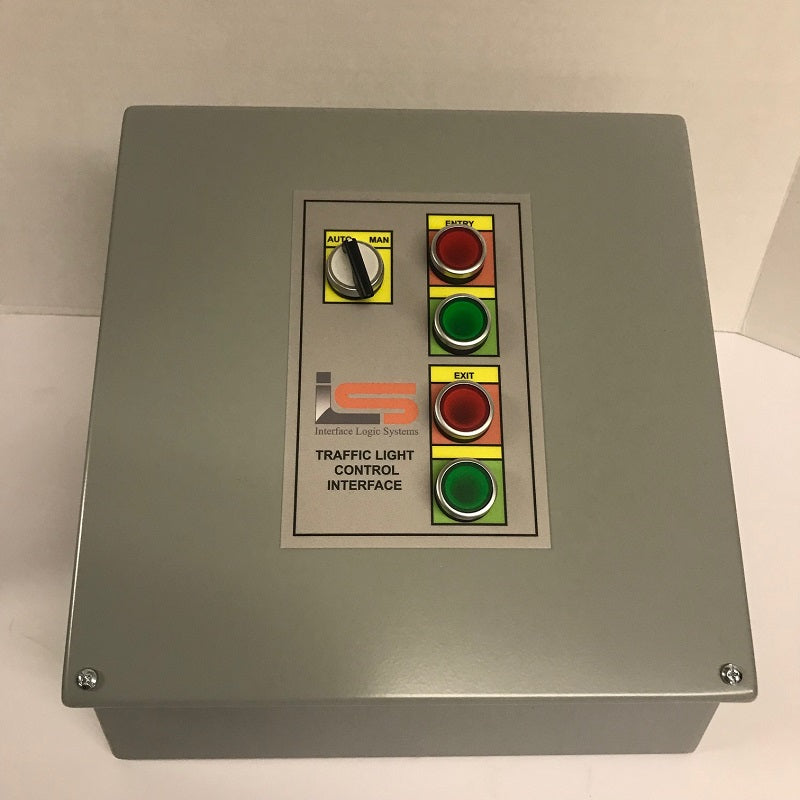

Traffic Light Control System

Automated Traffic Control for Bulk Weighing Operations

Product Overview

The ILS Traffic Light Control System is designed for bulk weighing and industrial automation applications where controlled vehicle movement is critical to operational safety, weighing accuracy, and traffic flow.

The system interfaces directly with ILS ScaleQ software and provides manual or automated control of red-green traffic signals at one or more truck scales.

Designed and built by Interface Logic Systems, the Traffic Light Control System serves as the control interface between ScaleQ, traffic signals, vehicle positioning equipment, and other automation devices, helping create a safer and more efficient traffic management process.

Designed and Built by ILS

The ILS Traffic Light Control System is designed, assembled, wired, and tested by Interface Logic Systems specifically for weighing and automation applications.

By developing the system in-house, ILS provides a reliable and flexible traffic control solution that can be tailored to the operational requirements of individual facilities.

The system is commonly used in aggregate operations, recycling facilities, transfer stations, landfills, mining operations, and other bulk material handling environments.

Integrated Control with ScaleQ Software

The Traffic Light Control System supports two-section (red-green) traffic signals and can control:

• One or two traffic lights per scale
• Incoming and outgoing traffic lanes
• Single-scale operations
• Multi-scale operations

All traffic light status and control functions are available directly within the ScaleQ software interface, providing operators with real-time visibility and control.

Benefits of Automated Traffic Control

The ILS Traffic Light Control System helps operations:

• Improve site safety
• Reduce driver confusion
• Improve traffic flow
• Increase scale throughput
• Improve weighing accuracy
• Reduce operator intervention
• Support unattended operations
• Standardize traffic management procedures

Automated vehicle control helps create a consistent process for drivers while improving operational efficiency.

Typical Operating Sequence

A standard traffic control configuration operates as follows:

Scale Empty

• Incoming and outgoing traffic lights display green.

Vehicle Boards the Scale

• Both traffic lights switch to red.

Weighment Completed

• Outgoing traffic light switches to green, signaling the driver to exit the scale.

Scale Returns to Zero

• Incoming traffic light switches to green, allowing the next vehicle to enter.

This process helps maintain safe and orderly vehicle movement while preventing premature scale access.

Vehicle Positioning Integration

The Traffic Light Control System can integrate with vehicle positioning sensors using photoelectric transmitter and receiver pairs installed at each end of the scale.

When vehicle positioning is enabled:

• Improper vehicle placement is detected automatically.
• Directional indicators can instruct drivers to move forward or backward.
• Weight transactions can be prevented until the vehicle is properly positioned.

This functionality helps improve weighing accuracy while supporting unattended operation.

Operator Visibility and Manual Override

Traffic light status is displayed directly within the ScaleQ operator interface near the live scale weight.

Operators can:

• View current light status
• Manually change signal states
• Handle unusual situations
• Maintain control during maintenance activities
• Override automated functions when necessary

Applications

The ILS Traffic Light Control System is commonly used in:

• Aggregate operations
• Asphalt facilities
• Recycling operations
• Transfer stations
• Landfills
• Mining operations
• Rail and transloading facilities
• Material handling operations
• Industrial weighing applications

Compatibility

• Interfaces with ILS ScaleQ software
• Supports single and multi-scale installations
• Integrates with vehicle positioning equipment
• Supports unattended weighing systems
• Compatible with additional ILS automation technologies

What You Are Purchasing

You are purchasing an ILS Traffic Light Control System designed to interface with ScaleQ software and traffic signal equipment.

Traffic lights, poles, sensors, wiring infrastructure, and installation services may be purchased separately unless otherwise specified.

Contact Us

Contact Interface Logic Systems for pricing, integration options, and additional product information.

Contact Us for Pricing
