2nd Generation Remote Data Terminal Board Retrofit Kit

Easy Upgrade for Existing ILS RDT Installations

Product Overview

The 2nd Generation Remote Data Terminal (RDT) Board Retrofit Kit is designed to make upgrading from a 1st generation RDT control board fast and straightforward.

ILS understands that many first‑generation RDT boards are still in service and have provided years of reliable operation. When the time comes to replace an older board, this retrofit kit allows customers to upgrade to the 2nd generation control board with minimal downtime and without requiring specialized tools or soldering.

Designed for Simple, Do‑It‑Yourself Replacement

The 2nd generation control board is pre‑mounted to a retrofit panel, allowing for an easy, do‑it‑yourself installation.

Key installation advantages include:

• Existing mounting screw locations align with the retrofit back panel
• No modification of the enclosure is required
• Designed as a drop‑in replacement for existing installations

This approach makes board replacement manageable for on‑site personnel.

Pre‑Installed Cable Assemblies

To simplify installation further, the retrofit kit includes pre‑installed cable assemblies for:

• LCD display
• Keypad
• Barcode scanner

With cables already in place, installation time is reduced and the chance of wiring errors is minimized.

Transition Mounting Plate Included

The kit includes a transition mounting plate that allows the new 2nd generation board assembly to fit directly onto the existing RDT back panel.

This ensures:

• Compatibility with current RDT enclosures
• Minimal disruption to existing hardware
• Faster return to normal operation

Built for Long‑Term Supportability

ILS RDT boards are known for their long service life. This retrofit kit extends that philosophy by allowing customers to modernize aging terminals while keeping the rest of their infrastructure intact.

Support Available When You Need It

If questions arise during installation, ILS technicians are available to help. Support is provided by phone, and technicians can walk you through the replacement process step by step.

Compatibility

• Designed for ILS Remote Data Terminal systems
• Intended for upgrading 1st generation RDT boards to 2nd generation
• Retrofit kit only

What You Are Purchasing

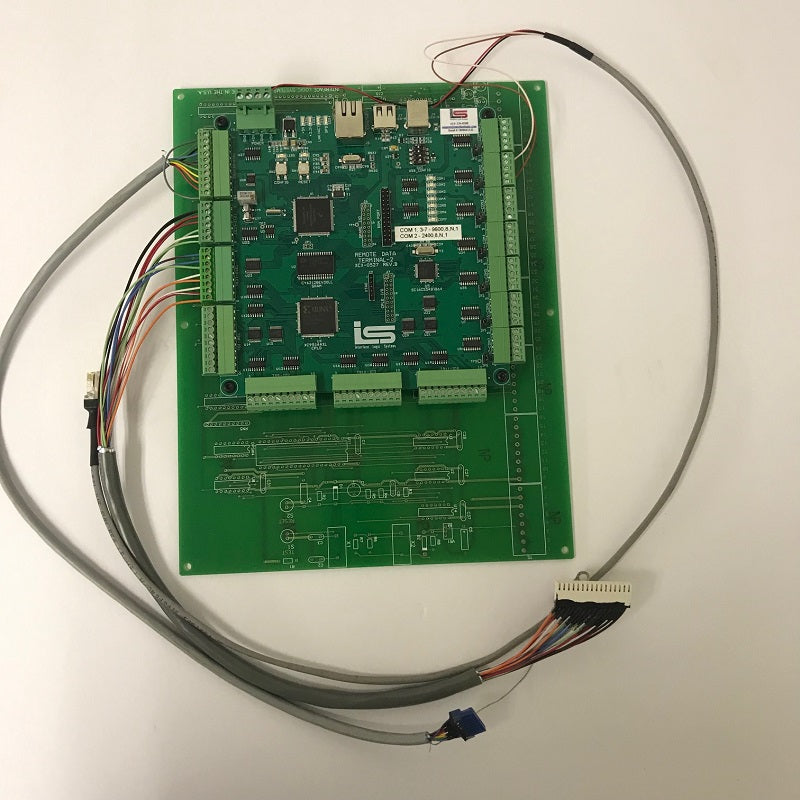

You are purchasing a 2nd Generation Remote Data Terminal Board Retrofit Kit, including:

• 2nd generation control board
• Retrofit mounting panel
• Transition mounting plate
• Pre‑installed cable assemblies

Remote terminal enclosures, displays, keypads, scanners, and software systems are not included unless otherwise specified.

Ideal Applications

• Existing ILS RDT installations
• Facilities upgrading aging electronics
• Outdoor and unattended scale kiosks
• Operations seeking minimal downtime upgrades
