Digital Signature Capture Pad

Weather‑Resistant Signature Capture for Scale Operations

Product Overview

The ILS Digital Signature Capture Pad enables electronic capture of driver signatures for both attended and unattended weighing applications.

Captured signatures are stored securely within the scale system database and are directly referenced to the associated transaction ticket number, providing a clear audit trail and supporting accurate recordkeeping.

Designed for Attended and Unattended Use

Signature capture pads are available for use in a wide range of scale environments, including:

• Attended scale houses
• Unattended or after‑hours weighing
• Outdoor and industrial installations

This offering includes a weather‑resistant industrial enclosure, making it suitable for deployment in demanding environments.

Signature Pad Features

• 4" x 3" LCD signature capture area
• High‑visibility display for clear signature input
• Active pen design for precise and reliable capture
• Pen rated for over 30 million tip activation cycles
• Pen tethered to the enclosure to prevent loss

Unlike membrane‑style inputs, the signature capture surface is not a membrane and is protected beneath a durable transparent cover.

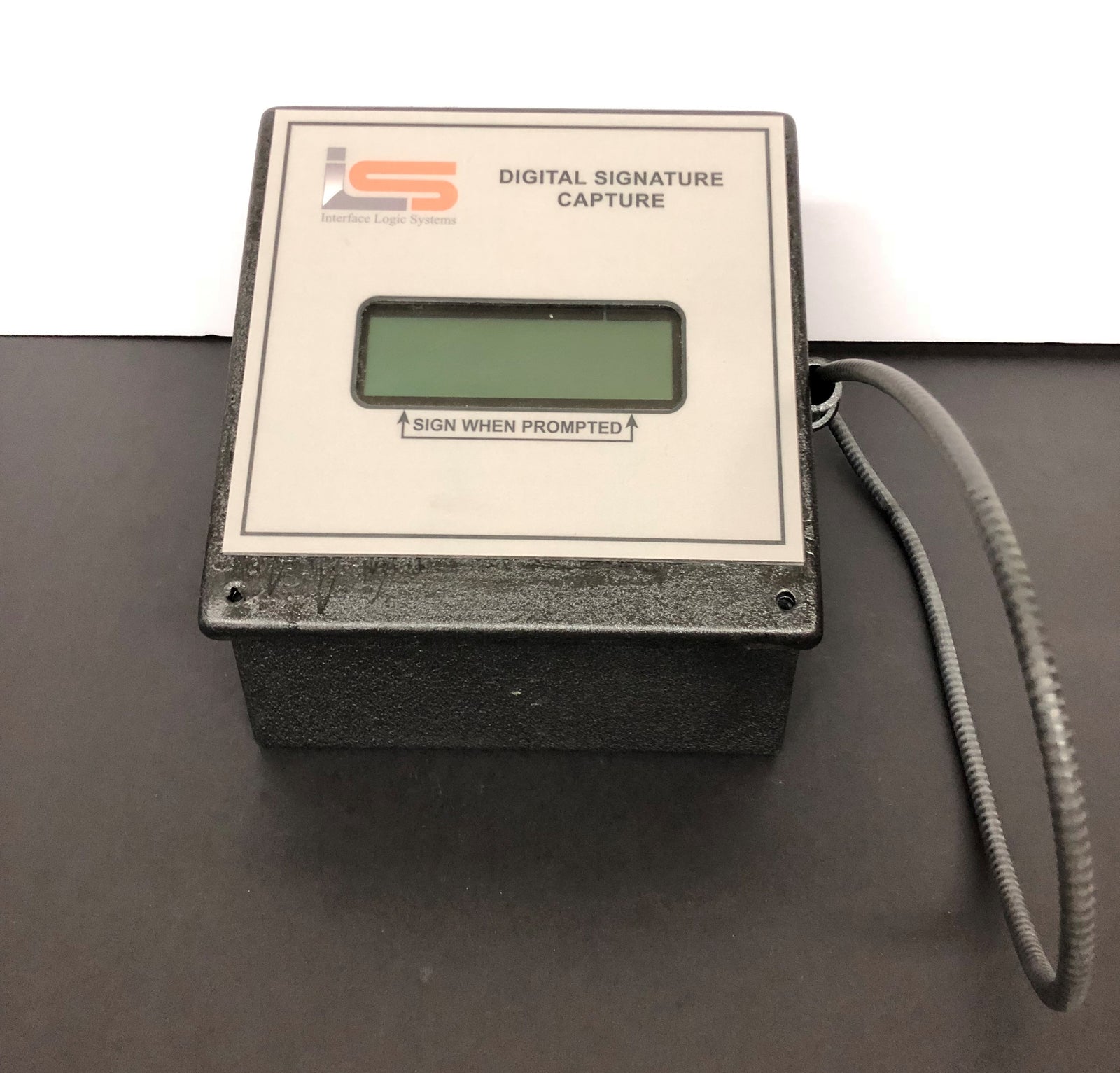

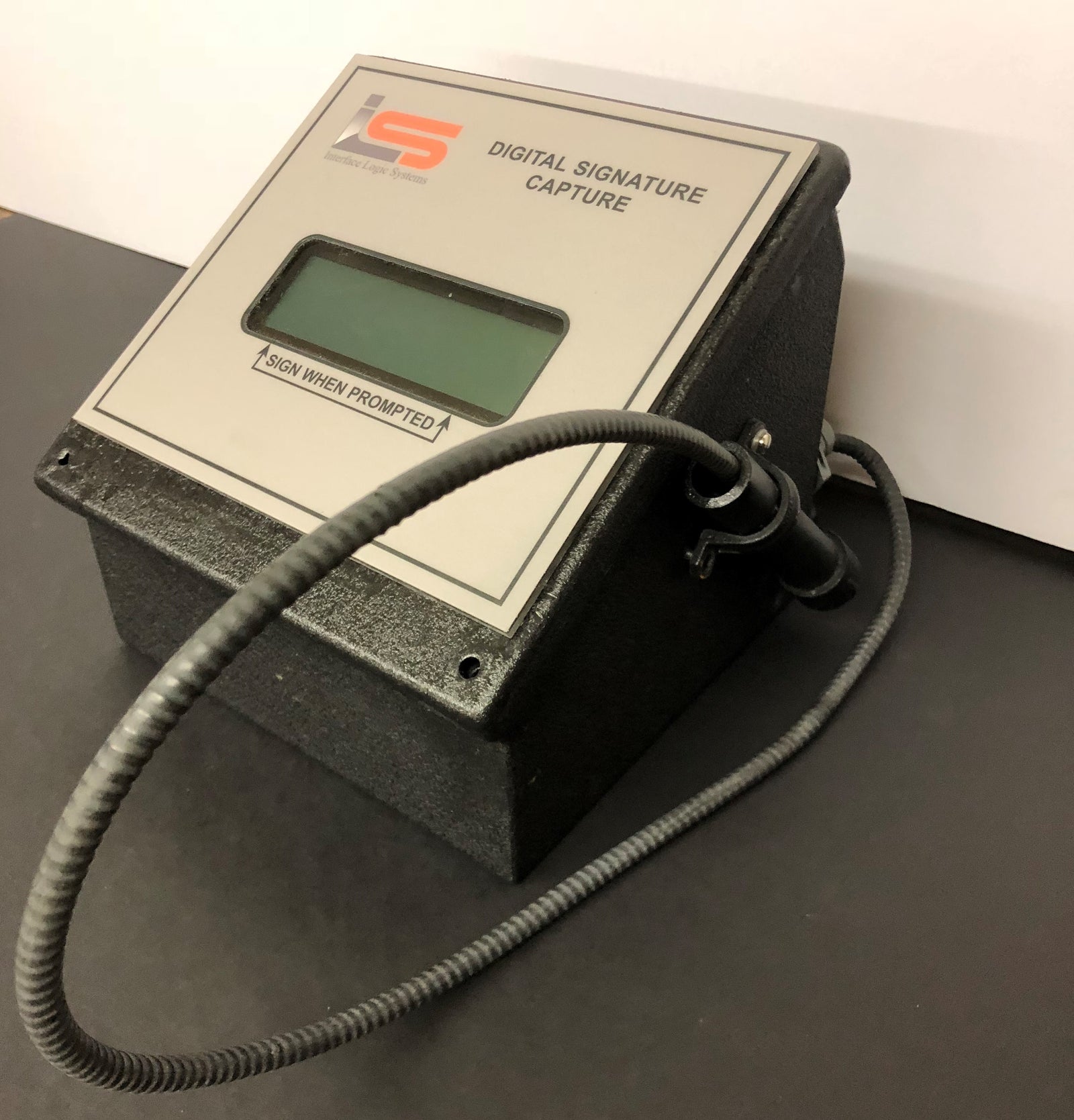

Built for Industrial Environments

The signature pad and all internal circuitry are mounted inside a heavy‑duty steel enclosure with a powder‑coat enamel finish, providing protection against environmental exposure and physical wear.

Durability features include:

• Outdoor weather‑resistant enclosure
• Signature area protected by a 1/8‑inch thick Lucite shield
• Weather‑resistant sheath protecting the pen cable

These features make the signature pad suitable for continuous use in outdoor and industrial scale environments.

Enclosure Dimensions

• Approximate size: 8‑1/4" x 8‑1/4" x 7‑1/2"

This compact size allows for convenient installation at scale houses, kiosks, or driver interaction points.

Integration With Scale Operations

The Digital Signature Capture Pad integrates seamlessly with ILS scale and ticketing systems, supporting:

• Secure transaction documentation
• Electronic signature storage
• Improved accountability and traceability

The system eliminates the need for paper signature handling while maintaining transaction integrity.

What You Are Purchasing

You are purchasing one Digital Signature Capture Pad installed in a weather‑resistant industrial enclosure, including tethered active pen.

Scale software, mounting hardware, kiosks, and other peripherals are not included unless otherwise specified.

Ideal Applications

• Truck scales (attended or unattended)
• Outdoor scale kiosks
• Industrial and commercial weighing facilities
• Operations requiring electronic signature records

Warranty

Interface Logic Systems warrants this product against defects in materials and workmanship for a period of one (1) year from the date of shipment, in accordance with ILS warranty terms.
